BNR Advance™ Note Recycler
Description

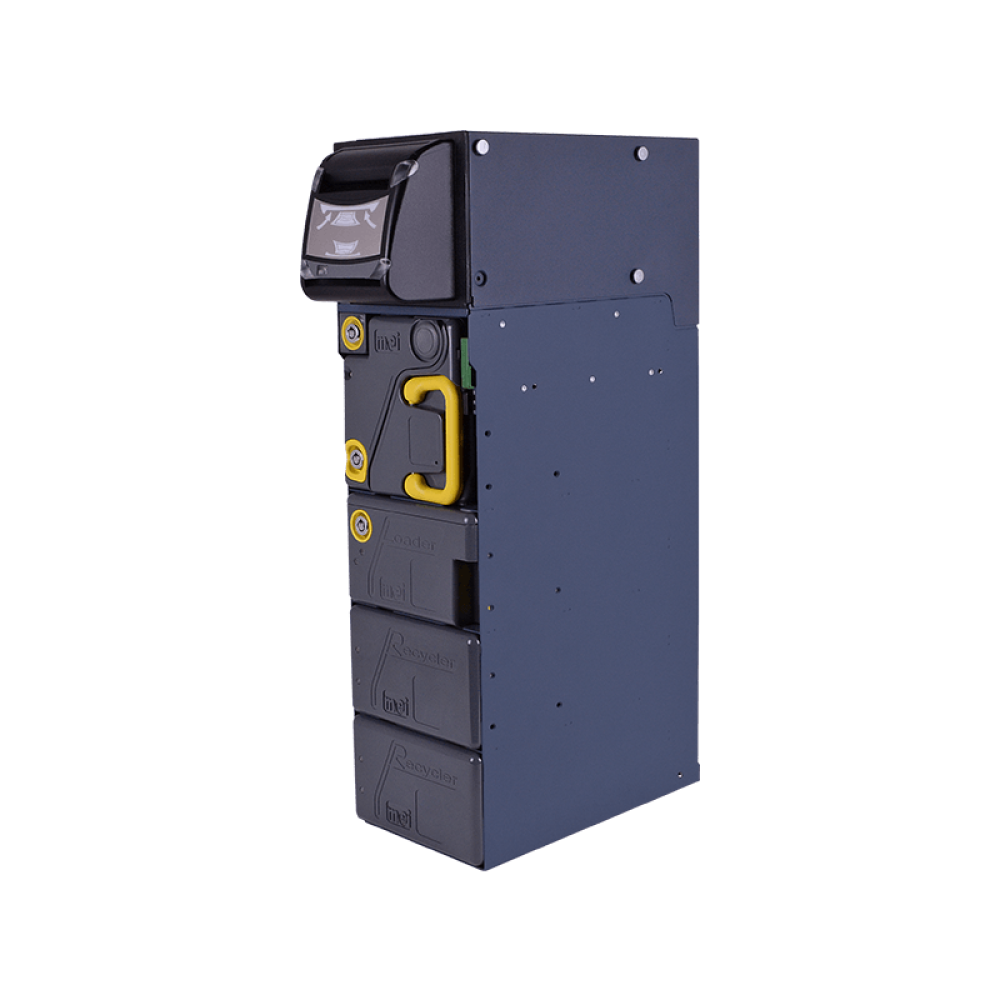

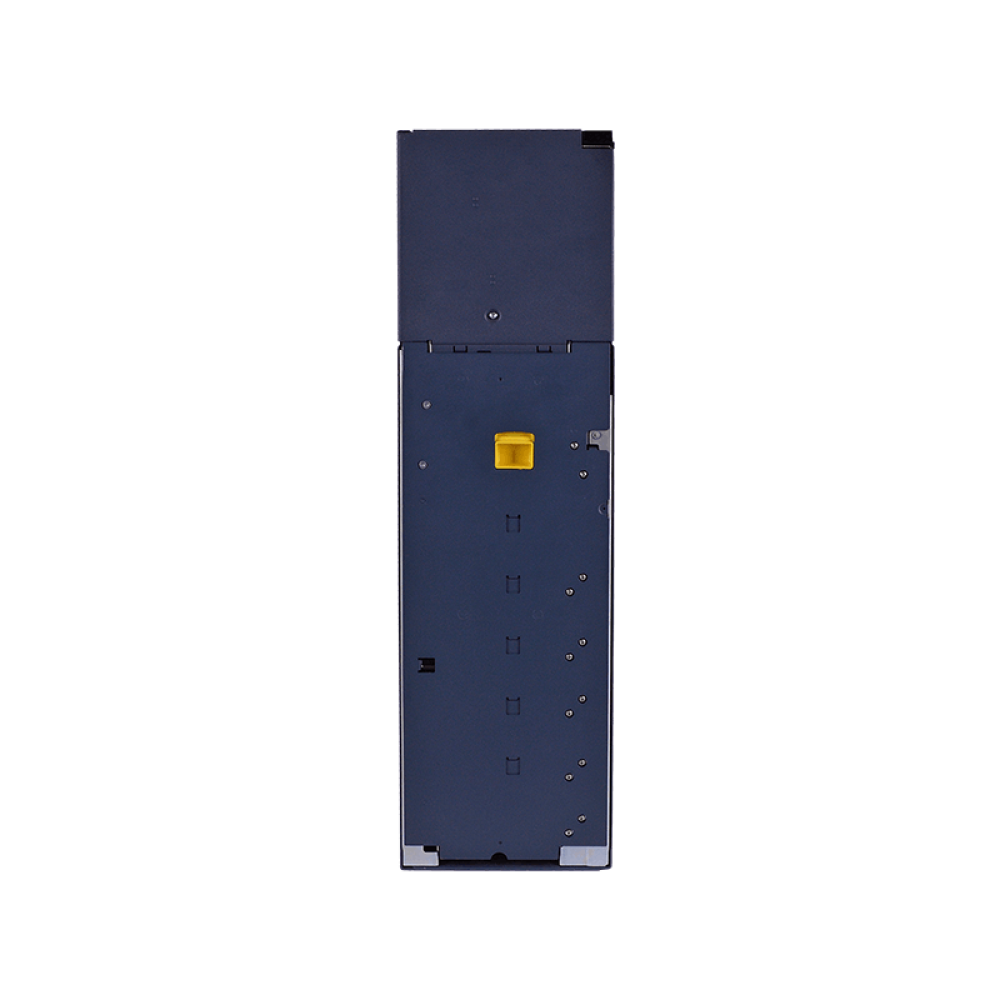

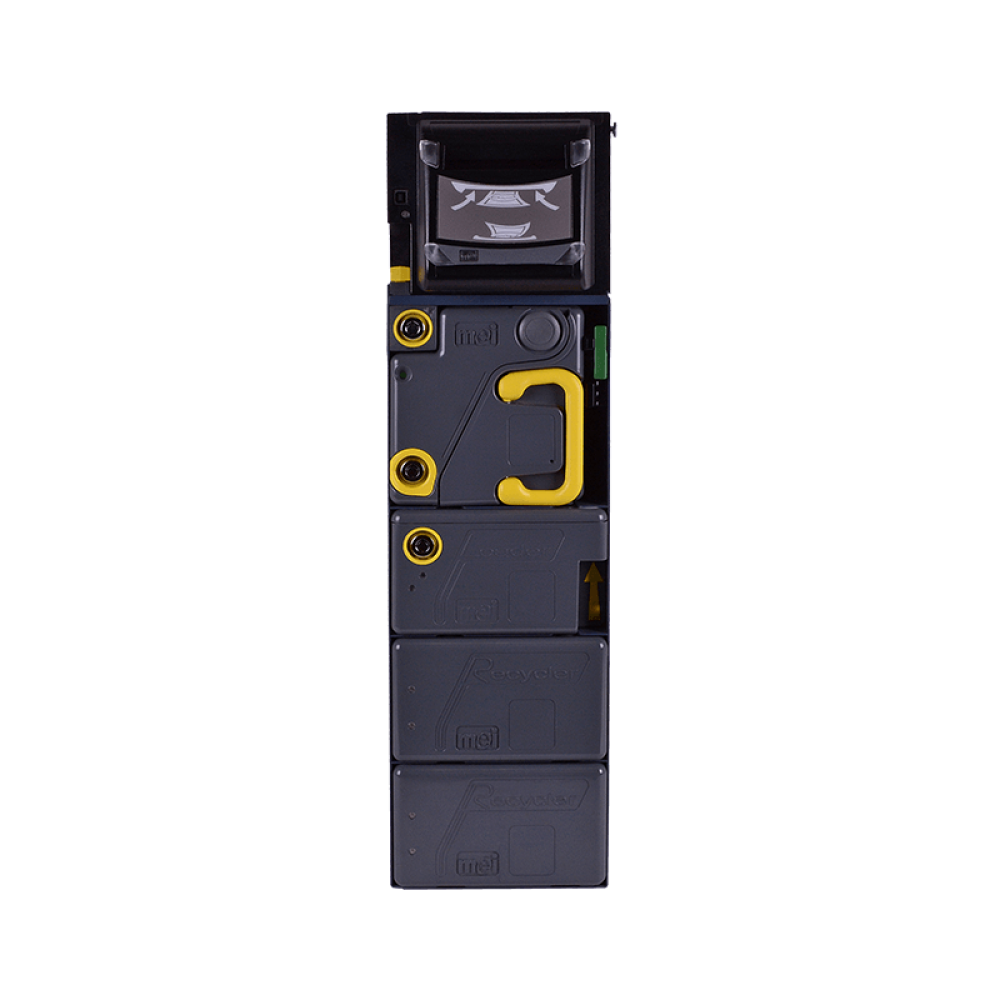

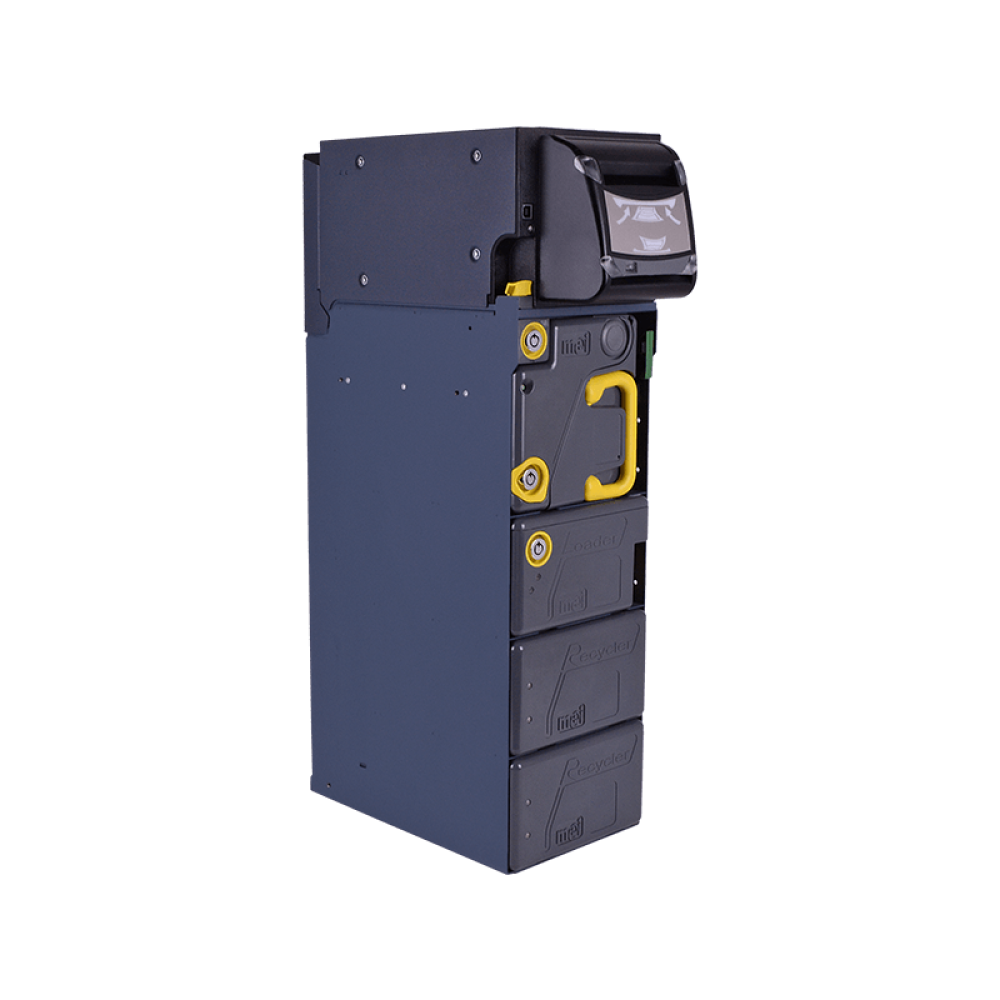

The MEI® BNR Advance banknote recycler is a fresh approach to today’s world of cash management. Designed to simulate the accept and dispense ability of a cashier, the BNR Advance automates cash handling. This smart recycling process removes the need for loading, emptying, and reconciling cash. This BNR Advance lowers labor costs, loss exposure, and downtime.
The modular design configurations make it ideal for applications in self-checkout, retail payment, financial services, and transport markets. Paired with a coin recycler, the BNR Advance will provide your business with a reliable, closed loop cash management solution allowing your team to focus more on the customer and less on the cash.
CALL OR EMAIL FOR PRICE!
Benefits
Customer friendly. High speed, high security acceptance in a closed loop system
Minimize customer waiting time. Bulk dispense of up to 15 notes to speed up transactions
Reconciling made easy. Audit data is retrieved at the end of the day with all daily funds stored in a single locked cashbox
Flexible design options. Up to 3 dual recycler modules allows recycling of up to 6 denominations
Increased security. Validates notes with advanced recognition while storing banknotes in a single, locked cashbox
Specifications
Dimensions (H x W x D mm)
-
Closed: 604mm x 165mm x 275mm
-
604mm x 165mm x 336mm
Note validation
-
60 – 83mm Width 120 – 190mm Length
Interfaces Supported
-
USB
Denominations Recycled
-
Up to 6
Recycling Cassette Capacity
-
Each cassette: 2 denominations 30+60 bills capacity
-
Up to 3 cassettes (Total 270 bills recycled, 6 denominations)
Maximum Stacking Capacity
-
600 or 1400 bills
Note Memory Capacity
-
Up to 150 notes, four ways
Operating Temperature
Storage Temperature
-
-40°C to 70°C
Operating Humidity
Firmware Updates
-
Remote software updates for firmware and note sets
Weight
-
up to 25.7kg (with Cashbox)
Compliance
-
UL / cUL recognized component to UL 756 and CSA 128
-
CB certification to IEC 60950
Acceptance Rate
-
98% or higher
Power Requirements
-
24VDC -10%/+20%
Current Consumption
-
Standby: 0.5A
-
Accepting: 8A
Bezels
-
B: plastic BZ / D: Flush metal BZ / S: Security Metal BZ
Maximum Length of Bill
-
190mm
Validation Sensors
-
Optical sensors
Variants
600 note cashbox standard (S) & large chassis
600 note cashbox standard (S) & small chassis
1400 note cashbox medium (M) & large chassis
1400 note cashbox medium (M) & small chassis
Accessories
Cashbox S (standard)
600 note capacity
Cashbox M (medium)
1,400 note capacity
Loader Cassette
- Up to 250 banknote capacity for start-up loading or negative float
- Lockable and removable
- Electronic memory for ID and content
- Adjustable replenish float level of recycler
Recycler Module
2x Denomination Recycler Module
Flush Metal Bezel
Flush Metal (high security) Bezel
Black Plastic Bezel
Silver Plastic Bezel
MEI STS Advance™ for Banknotes
STS Advance provides operators with the most flexibility and control over machines that have been enhanced with BNR Advance and BNA6 Advance products. It supports a full range of configuration and software update functions with user-friendly software and handheld tools so you can:
- Reconfigure for new/multiple currency software and configuration data
- Monitor the performance of your BNR Advance and BNA6 Advance field base
- Collect unit performance and report audit data
- Supports PPM and PPM Advance
STS Advance is designed for use with minimal training so you can meet your unique support needs quickly and easily.
